New Custom made trailer designed for the weight distribution of your build
Exterior dimensions:34' total length, 8'6" total width including roof overhang and total height of 13'5" tall including 2' trailer height.
Smartboard board and batt siding
Arched barrel framed flat Metal roof, color of choice overhangs house walls by 2 inch on both sides, and a custom built metal nose cone in very front roof of trailer.

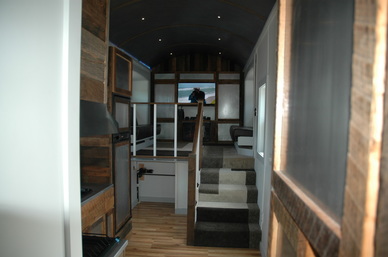

Front living room with 2 six foot slide outs, and 12” deep built in storage cabinet in nose of the trailer
Mid-bathroom with residental toilet, small sink, 36” one-piece shower
Mid kitchen with a 24” deep Stainless single basin sink, a Danby 4 burner propane rv stove with oven; a 9.9 cu.ft. Danby fridge, and 28” opening under the counter for washer dryer combo.
Mid/rear kitchen with a 24” deep Stainless single basin sink, a Danby 4 burner propane range; a 9.2 cu.ft. Danby fridge
8' loft above kitchen and bathroom
One sheet vinyl flooring
All interior walls to be pine tongue and groove finished plywood with seams every 4’ or bead board (color chosen by the customer)
50 amp RV connection and 50 amp panel
3" RV twist drain connection, hose water connection plumbing pipe
